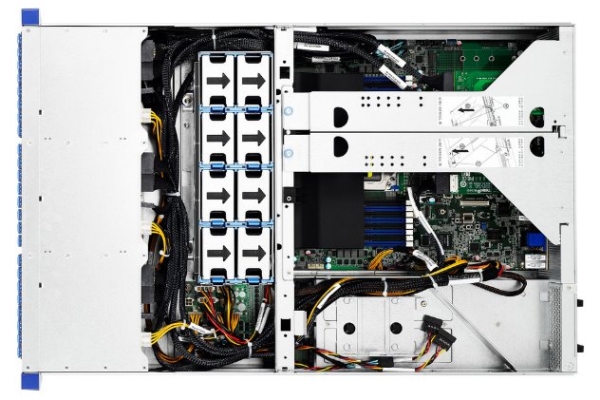

Tyan Thunder HX FT77DB7109 (B7109F77DV14HR-2T-NF) Specifications System Form Factor 4U Rackmount Chassis Model FT77D Dimension (D x W x H) 30.31" x 17.24" x 6.93" (770 x 438 x 176mm) Motherboard Name S7109GM2NR-2T # Motherboard Notification # The motherboard not sold separately Gross Weight 45 kg (99.5 lbs) Net weight 26 kg (57.5 lbs) Front Panel Buttons (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED LEDs (1) HDD / (1) ID / (1) Warning / (3) LAN I/O Ports (2) USB 3.0 ports Internal Drive Bay Q'ty / Type (14) 2.5" Hot-Swap SSD/HDD HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s /NVMe Supported HDD Interface (14) SATA 6Gb/s System Cooling Configuration Redundancy Yes FAN (5+1) hot-swap 12cm fans Power Supply Type CRPS Input Range AC 100-127V/12.9A / AC 200-240V/9.5A Frequency 47-63 Hz Output Watts 2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) Efficiency PFC / 80 plus Platinum Redundancy 2+1 Processor Q'ty / Socket Type (2) LGA3647 / *Socket-F support Supported CPU Series Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage Max up to 205W System Bus Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH Intel C621 Switch IC (4) PLX PEX8747 Memory Supported DIMM Qty (12)+(12) DIMM slots DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / Intel Optane DC Persistent Memory Module (DCPMM) Capacity Up to 1,536GB RDIMM/LRDIMM & 3,072GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR Memory channel 6 Channels per CPU Memory voltage 1.2V Notification DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail. Expansion Slots PCI-E (1) PCI-E Gen3 x16 slot (FH / FL / SW) / (8) PCI-E Gen3 x16 slots (FH / FL / DW) Pre-installed TYAN Riser Card (PCI-E Gen3) (1) M2215-L8-1F # riser card for (1) LAN mezz. slot (left) / (1) M2217-L16-IO # riser card for (1) storage mezz. slot Others (1) PCI-E Gen3 x8 storage mezz. slot / (1) PCI-E Gen3 x8 LAN mezz. slot Physical Dimension Abbreviation FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm) Notification # The item not sold separately LAN Q'ty / Port (2) 10GbE ports / (1) GbE dedicated for IPMI Controller Intel X550-AT2 PHY Realtek RTL8211E Storage SATA Connector (2) Mini-SAS HD (8 ports) Controller Intel C621 Speed 6Gb/s RAID RAID 0/1/10/5 (Intel RSTe) sSATA Connector (2) SATA-III / (1) Mini-SAS HD (4 ports) Controller Intel C621 Speed 6Gb/s RAID RAID 0/1/10/5 (Intel RSTe) Graphic Connector type D-Sub 15-pin Resolution Up to 1920x1200 Chipset Aspeed AST2500 I/O Ports USB (2) USB3.0 ports (@ front) COM (1) DB-9 COM port (@ front) VGA (1) D-Sub 15-pin port (@ front) RJ-45 (2) 10GbE ports, (1) dedicated GbE for IPMI TPM (Optional) TPM Support Please refer to our TPM supported list. System Monitoring Chipset Aspeed AST2500 Temperature Monitors temperature for CPU & memory & system environment Voltage Monitors voltage for CPU, memory, chipset & power supply LED Over temperature warning indicator / Fan & PSU fail LED indicator Others Watchdog timer support Server Management Onboard Chipset Onboard Aspeed AST2500 AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface BIOS Brand / ROM size AMI / 32MB Feature Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1 Operating System OS supported list Please refer to our AVL support lists. Regulation FCC (SDoC) Class A CE (DoC) Class A CB/LVD Yes RCM Class A VCCI Class A Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F) Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) In/Non-operating Humidity 90%, non-condensing at 35° C Note Please refer to the TYAN NVIDIA Compatibility List for the operating temperature while GPGPU deployed RoHS RoHS 6/6 Compliant Yes Package Contains Barebone (1) FT77D-B7109 w/NV Tesla-aware FW Barebone Manual (1) Quick Installation Guide Installation CD (1) TYAN Device Driver CD
