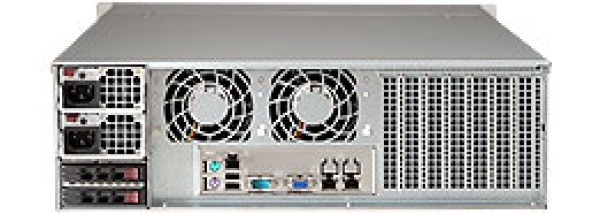

Product SKUs CSE-836BA-R920B SuperChassis 836BA-R920B Form Factor 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX Processor Support Dual and Single Intel® and AMD processors Dimensions Height 5.2" (132 mm) Width 17.2" (437 mm) Depth 25.5" (647 mm) Gross Weight 52 lbs (23.59 kg) Packaging (W x H x L) 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm) Available Color Black Expansion Slots 7 full-height & full-length expansion slot(s) Drive Bays 16 x 3.5" hot-swap SAS/SATA drive bay with SES2 Backplane 16-port 3U SAS 6Gbps direct-attached backplane, support up to 16x 3.5-inch SAS/SATA HDD/SSD Peripheral Drives Optional 1 x Slim DVD-ROM Drive Optional 1 x slim 1.44MB Floppy Drive Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power LED Power Fail LED System Overheat LED Ports 2x USB & DB9 COM port tray Systems Cooling Fans 3 x 80mm Hot-swap PWM Fans 2 x 80mm rear hot-swap exhaust PWM fan(s) System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 920W Redundant Platinum Super Quiet power supply W/PMbus Power Efficiency 94% Total Output Power and Input 920W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) -12V Max: NAA +12V Max: 75A / Min: 1A (100Vac - 240Vac) +5Vsb Max: 4A / Min: 0A +12Vsb Max: NAA Power Distributor PDB-PT826-8824 O/P: 12V/135 +5V Max: 40 +3.3V Max: 24 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Air Shroud MCP-310-39001-0N 1 SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB HD Backplane BPN-SAS-836A 1 16-port 3U SAS 6Gbps direct-attached backplane, support up to 16x 3.5-inch SAS/SATA HDD/SSD Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836 Fan(s) FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836 Drive Tray(s) MCP-220-00075-0B 16 Black gen 5.5 hot-swap 3.5" HDD tray Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B Part(s) MCP-290-83601-0V 1 set Silver chassis handles (left and right) for SC836/835 Power Supply & Accessory PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag Rear Window MCP-240-83605-0N 1 836B chassis rear window (to support the optional MCP-220-83605-0N) Optional Parts List Part Number Qty Description HDD Kit MCP-220-81504-0N - 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED HDD Kit MCP-220-81506-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED HDD Kit MCP-220-83605-0N - Rear 2 X 2.5 Hot swap HDD kit for 836B/835B HDD Kit MCP-220-83608-0N - 12G Rear 2.5x2 Hot-swap HDD kit w/ Status LED for 836B/835B Drive Trays MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH DVD-ROM / DVD-RW DVM-TEAC-DVDRW-SBT4 - BLACK TEAC SLIM DVD-RW SATA DRIVE,RoHS DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT4 - BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH DVD-ROM / DVD-RW DVM-PNSC-DVD-SBT3 - BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 Front Bezel MCP-210-83601-0B - Black Front Bezel Assembly for SC836/837 Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis Cable CBL-0296L - 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length Motherboard (for CSE- 836BA-R920B) X9DR3-LN4F+ X9DRi-LN4F+ X9DR3-F X9DRi-F X9DR7-LN4F (-JBOD) X9DRE-LN4F X9DRH-7F X9DRH-7TF X9DRH-iF X9DRH-iTF X9DRD-7LN4F-JBOD X9DRD-EF X9DA7 X9DAE X9DAi X9SRi X9SRi-3F X9SCM-iiF X9DRD-7LN4F H8DG6 H8DG6-F H8DGi H8DGi-F X9SRi-F X8DTH-6 X8DTH-6F X8DTH-i X8DTH-iF X8DT6 X8DT6-F X8DTE X8DTE-F X8DT3 X8DT3-F X8DTi X8DTi-F X8DTi-LN4F X8DT3-LN4F X9SCL X9SCL-F X9SCL+-F X9SCM X9SCM-F X9SCI-LN4 X9DB3-TPF X9DB3-F X9DBi-TPF X9DBi-F X9DRH-iF-NV X10DRi-LN4+ X10DRi-T4+ X10DAi X10DAC X10DAX
