- 1U Chassis, Support proprietary WIO MB size 8”x13” and up to 12.3”x13”
- 4 x 3.5" hot-swap SAS3/SATA drive bay
SAS or enterprise SATA HDD only recommended - 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
- 1U 500W/600W redundant single output 80PLUS Platinum_x000D_
- 2 full-height & full-length expansion slot(s) , 1 low-profile expansion slot(s)
- 4 x 40x56mm counter-rotation PWM fan(s)
Optional 2 x fans for AOC cooling
|
|
| Standard Parts List | |||
| Part Number | Qty | Description | |
| Air Shroud | MCP-310-19002-0N | 1 | SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB |
| HD Backplane | BPN-SAS3-815TQ-N4 | 1 | 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices |
| Cable(s) | CBL-0335L | 1 | FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF |
| Cable(s) | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| Part(s) | MCP-230-00036-0N | 1 | Top cover with 1 mylar for SC815 (cost-down) |
| Part(s) | MCP-240-00099-0N | 1 | 1U WIO riser card bracket for SC113, SC815, SC119, SC819 |
| Part(s) | MCP-270-81505-0N | 1 | Chassis base for SC815T, U version, Redundant PWS(cost-down) |
| Part(s) | MCP-290-00088-0N | 1 | SC119 Intrusion assembly |
| CD-ROM & Accessory | CSE-PT93L-B | 1 | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS |
| Fan(s) | FAN-0141L4 | 4 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan |
| Front Panel | FPB-FP815U | 1 | 815 UIO front control board (U) |
| Cooling Fan & Accessory | CSE-PT0135 | 1 | FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS |
| Cooling Fan & Accessory | MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
| Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5" HDD tray |
| Power Distributor | PDB-PT112-S2424 | 1 | WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424 |
| Part(s) | MCP-120-00030-0N | 1 | Blank LP L-bracket (1 raw of capsule hole) |
| Part(s) | MCP-120-00053-0N | 2 | Blank FH L bracket w/o SCSI cutout for SC825,836,846,743 |
| Power Supply & Accessory | MCP-250-81502-0N | 1 | SC815 Redundant Power Distributor Cover |
| Power Supply & Accessory | PWS-504P-1R2 | 2 | 1U Redundant 500W/600W, Platinum efficiency, AC inlet: C14,RoHS |
| Mounting Rail(s) | MCP-290-00054-0N | 1set | Rail set, quick/quick, optional for 1U 17.2 |
| Rear Window | MCP-240-00098-0N | 1 | WIO rear window for SC113,SC116, SC815 Redundant PWS |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Adaptor HDD carrier | MCP-220-00043-0N • |
- | Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray |
| Drive Trays | MCP-220-00116-0B • |
- | Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH |
| Front Bezel | CSE-PTFB-813LB (black) | - | Front Bezel Cover with Key Lock & Filter, Black, Beige, LCD options |
| Front Tray | CSE-PT40 (B) | - | Front USB and COM tray (Occupies Slim Floppy Drive Location) |
| Heatsink / Retention | N/A | - | Please refer to our Thermal Components Matrix |
| LCD/OLED Solutions | N/A | - | Please reference the LCD/OLED Display Solutions for details |
| Mounting Rail | MCP-290-00056-0N • |
- | 19" to 26.4" outer rail, /quick, for 1U 17.2" W chassis |
| Peripheral Drive(s) | MCP-220-81502-0N • |
- | Slim SATA DVD kit (include backplane, cable) |
| DVM-PNSC-DVD-SBT3 | - | Black slim SATA DVD (8x DVD, 24x CDR), Panasonic | |
| Tray(s) | MCP-290-00036-0B | - | Black DVD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick) |
| Servers (for CSE-815TQC4-R504WB3) |
| SYS-510T-WTR |
= Most optimized Chassis for SuperServer Configuration
Technické parametry

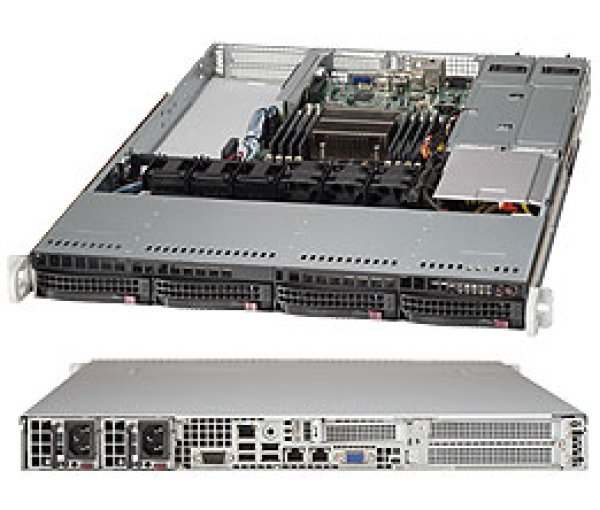

SUPERMICRO 1U chassis 4x 3,5" HS NVMe/SAS/SATA, 2x600W (80PLUS Platinum), WIO, X11
Výrobce
Supermicro
21 653 Kč
17 895 Kč bez DPH
Skladem
Parametry
Kód produktu
010SRCSE815TQC4R504WB3
EAN
672042442034_DUPLICATE_6ed3f84f7af54e29c465c2584b3cee9b_
Popis
- 1U Chassis, Support proprietary WIO MB size 8”x13” and up to 12.3”x13”
- 4 x 3.5" hot-swap SAS3/SATA drive bay
SAS or enterprise SATA HDD only recommended - 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
- 1U 500W/600W redundant single output 80PLUS Platinum_x000D_
- 2 full-height & full-length expansion slot(s) , 1 low-profile expansion slot(s)
- 4 x 40x56mm counter-rotation PWM fan(s)
Optional 2 x fans for AOC cooling
|
|
| Standard Parts List | |||
| Part Number | Qty | Description | |
| Air Shroud | MCP-310-19002-0N | 1 | SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB |
| HD Backplane | BPN-SAS3-815TQ-N4 | 1 | 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices |
| Cable(s) | CBL-0335L | 1 | FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF |
| Cable(s) | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| Part(s) | MCP-230-00036-0N | 1 | Top cover with 1 mylar for SC815 (cost-down) |
| Part(s) | MCP-240-00099-0N | 1 | 1U WIO riser card bracket for SC113, SC815, SC119, SC819 |
| Part(s) | MCP-270-81505-0N | 1 | Chassis base for SC815T, U version, Redundant PWS(cost-down) |
| Part(s) | MCP-290-00088-0N | 1 | SC119 Intrusion assembly |
| CD-ROM & Accessory | CSE-PT93L-B | 1 | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS |
| Fan(s) | FAN-0141L4 | 4 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan |
| Front Panel | FPB-FP815U | 1 | 815 UIO front control board (U) |
| Cooling Fan & Accessory | CSE-PT0135 | 1 | FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS |
| Cooling Fan & Accessory | MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
| Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5" HDD tray |
| Power Distributor | PDB-PT112-S2424 | 1 | WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424 |
| Part(s) | MCP-120-00030-0N | 1 | Blank LP L-bracket (1 raw of capsule hole) |
| Part(s) | MCP-120-00053-0N | 2 | Blank FH L bracket w/o SCSI cutout for SC825,836,846,743 |
| Power Supply & Accessory | MCP-250-81502-0N | 1 | SC815 Redundant Power Distributor Cover |
| Power Supply & Accessory | PWS-504P-1R2 | 2 | 1U Redundant 500W/600W, Platinum efficiency, AC inlet: C14,RoHS |
| Mounting Rail(s) | MCP-290-00054-0N | 1set | Rail set, quick/quick, optional for 1U 17.2 |
| Rear Window | MCP-240-00098-0N | 1 | WIO rear window for SC113,SC116, SC815 Redundant PWS |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Adaptor HDD carrier | MCP-220-00043-0N • |
- | Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray |
| Drive Trays | MCP-220-00116-0B • |
- | Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH |
| Front Bezel | CSE-PTFB-813LB (black) | - | Front Bezel Cover with Key Lock & Filter, Black, Beige, LCD options |
| Front Tray | CSE-PT40 (B) | - | Front USB and COM tray (Occupies Slim Floppy Drive Location) |
| Heatsink / Retention | N/A | - | Please refer to our Thermal Components Matrix |
| LCD/OLED Solutions | N/A | - | Please reference the LCD/OLED Display Solutions for details |
| Mounting Rail | MCP-290-00056-0N • |
- | 19" to 26.4" outer rail, /quick, for 1U 17.2" W chassis |
| Peripheral Drive(s) | MCP-220-81502-0N • |
- | Slim SATA DVD kit (include backplane, cable) |
| DVM-PNSC-DVD-SBT3 | - | Black slim SATA DVD (8x DVD, 24x CDR), Panasonic | |
| Tray(s) | MCP-290-00036-0B | - | Black DVD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick) |
| Servers (for CSE-815TQC4-R504WB3) |
| SYS-510T-WTR |
Parametry
Kód produktu
010SRCSE815TQC4R504WB3
EAN
672042442034_DUPLICATE_6ed3f84f7af54e29c465c2584b3cee9b_
