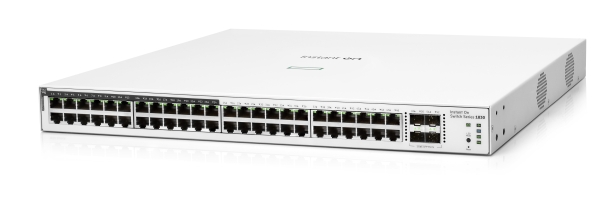

Aruba Instant On 1830 48G 4SFP 370W Switch (24x RJ45 10/100/1000 24x Class4 PoE)

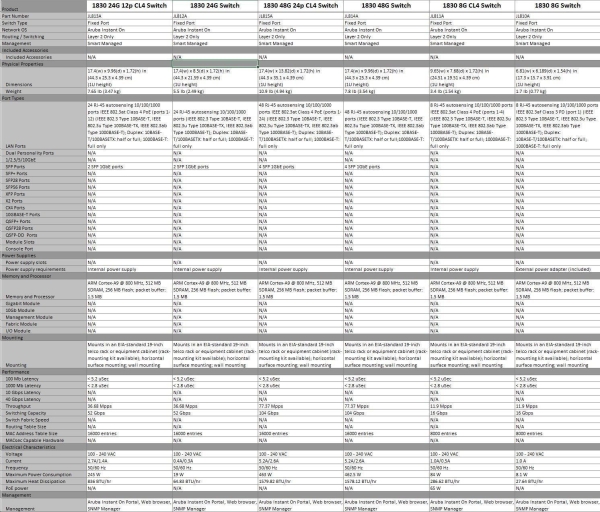

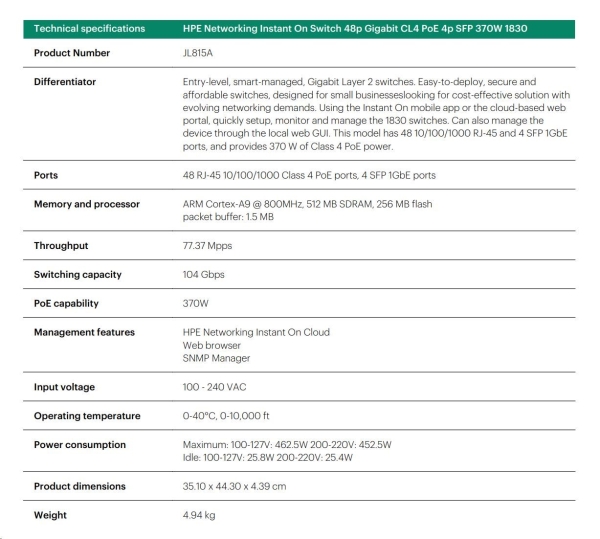

Parametry
|
Aruba Instant On 1830 8G Switch (JL810A) |
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) |
Aruba Instant On 1830 24G 2SFP Switch (JL812A) |
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) |
Aruba Instant On 1830 48G 4SFP Switch (JL814A) |
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) |
||||
|
I/O ports and slots |
|||||||||
|
8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports |
24 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports |
48 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports |
||||
|
Physical Characteristics |
|||||||||
|
Dimensions |
157.0(d) x 173.0(w) x 39.1(h) mm |
195.1(d) x 245.1(w) x 43.9(h) mm |
215.9(d) x 443.0(w) x 43.9(h) mm |
253.0(d) x 443.0(w) x 43.9(h) mm |
253.0(d) x 443.0(w) x 43.9(h) mm |
351.0(d) x 443.0(w) x 43.9(h) mm |
|||
|
Weight |
1.70 lb (0.77 kg) |
3.40 lb (1.54 kg) |
5.50 lb (2.49 kg) |
7.65 lb (3.47 kg) |
7.80 lb (3.54 kg) |
10.90 lb (4.94 kg) |
|||
|
Processor and Memory |
|||||||||
|
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
"RM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
||||
|
Aruba Instant On 1830 8G Switch (JL810A) |
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) |
Aruba Instant On 1830 24G 2SFP Switch (JL812A) |
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) |
Aruba Instant On 1830 48G 4SFP Switch (JL814A) |
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) |
||||||||
|
Performance |
|||||||||||||
|
100 Mb latency |
< 5.2 uSec |
< 5.2 uSec |
< 5.2 uSec |
< 5.2 uSec |
< 5.2 uSec |
< 5.2 uSec |
|||||||
|
1000 Mb latency |
< 2.8 uSec |
< 2.8 uSec |
< 2.8 uSec |
< 2.8 uSec |
< 2.8 uSec |
< 2.8 uSec |
|||||||
|
10000 Mb latency |
n/a |
n/a |
n/a |
n/a |
n/a |
n/a |
|||||||
|
Throughput (Mpps) |
11.90 Mpps |
11.90 Mpps |
38.68 Mpps |
38.68 Mpps |
77.37 Mpps |
77.37 Mpps |
|||||||
|
Capacity |
16 Gbps |
16 Gbps |
52 Gbps |
52 Gbps |
104 Gbps |
104 Gbps |
|||||||
|
MAC address table size (# of entries) |
8,000 entries |
8,000 entries |
16,000 entries |
16,000 entries |
16,000 entries |
16,000 entries |
|||||||
|
Reliability MTBF (years) |
188.2 |
105.9 |
203.6 |
96.6 |
114.4 |
83.5 |
|||||||
|
Environment |
|||||||||||||
|
Operating temperature |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
|||||||
|
Operating relative humidity |
15% to 95% @ 104°F (40°C) |
15% to 95% @ 104°F (40°C) |
15% to 95% @ 104°F (40°C) |
15% to 95% @ 104°F (40°C) |
15% to 95% @ 104°F (40°C) |
15% to 95% @ 104°F (40°C) |
|||||||
|
Nonoperating/ storage temperature |
-40°F to 158°F (-40°C to 70°C) |
-40°F to 158°F (-40°C to 70°C) |
-40°F to 158°F (-40°C to 70°C) |
-40°F to 158°F (-40°C to 70°C) |
-40°F to 158°F (-40°C to 70°C) |
-40°F to 158°F (-40°C to 70°C) |
|||||||
|
Nonoperating/ storage relative humidity |
15% to 95% @ 140°F (60°C) |
15% to 95% @ 140°F (60°C) |
15% to 95% @ 140°F (60°C) |
15% to 95% @ 140°F (60°C) |
15% to 95% @ 140°F (60°C) |
15% to 95% @ 140°F (60°C) |
|||||||
|
Altitude |
up to 10,000 ft (3 km) |
up to 10,000 ft (3 km) |
up to 10,000 ft (3 km) |
up to 10,000 ft (3 km) |
up to 10,000 ft (3 km) |
up to 10,000 ft (3 km) |
|||||||
|
Acoustics1 |
|||||||||||||
|
Fanless |
Fanless |
Fanless |
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
LWAd = 3.4 Bel LpAm (Bystander) = 19 dB |
LWAd = 4.0 Bel LpAm (Bystander) = 25 dB |
||||||||
|
Notes: 1Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL813A and JL815A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) |
|||||||||||||
|
100% traffic |
Fanless |
Fanless |
Fanless |
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
LWAd = 3.4 Bel LpAm (Bystander) = 19 dB |
LWAd = 3.5 Bel LpAm (Bystander) = 20 dB |
|||||||
|
100% traffic / 0% PoE |
Fanless |
Fanless |
Fanless |
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
- |
LWAd = 3.5 Bel LpAm (Bystander) = 20 dB |
|||||||
|
100% traffic / 50% PoE |
Fanless |
Fanless |
Fanless |
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
- |
LWAd = 4.0 Bel LpAm (Bystander) = 25 dB |
|||||||
|
100% traffic / 100% PoE |
Fanless |
Fanless |
Fanless |
LWAd = 5.1 Bel LpAm (Bystander) = 35 dB |
- |
LWAd = 5.7 Bel LpAm (Bystander) = 41 dB |
|||||||
|
Aruba Instant On 1830 8G Switch (JL810A) |
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) |
Aruba Instant On 1830 24G 2SFP Switch (JL812A) |
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) |
Aruba Instant On 1830 48G 4SFP Switch (JL814A) |
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) |
||||||||
|
Electrical Characteristics |
|||||||||||||
|
Frequency |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
|||||||
|
AC voltage |
100-127VAC / 200- 240VAC |
100-127VAC / 200- 240VAC |
100-127VAC / 200- 240VAC |
100-127VAC / 200- 240VAC |
100-127VAC / 200- 240VAC |
100-127VAC / 200- 240VAC |
|||||||
|
Current |
12V -- 1.0A |
1.0A/0.5A |
0.4A/0.3A |
2.7A/1.4A |
0.9A/0.6A |
5.2A/2.6A |
|||||||
|
Maximum power rating |
100-127V: 8.09W 200-220V: 8.05W |
100-127V: 86.07W 200-220V: 83.67W |
100-127V: 19.1W 200-220V: 19W |
100-127V: 244.6W 200-220V: 237.2W |
100-127V: 40.2W 200-220V: 40W |
100-127V: 462.5W 200-220V: 452.5W |
|||||||
|
Idle power |
100-127V: 5.8W 200-220V: 5.9W |
100-127V: 8.3W 200-220V: 8.2W |
100-127V: 7.6W 200-220V: 7.8W |
100-127V: 14.5W 200-220V: 13.4W |
100-127V: 17.7W 200-220V: 17.7W |
100-127V: 25.8W 200-220V: 25.4W |
|||||||
|
PoE power |
13W max Class 3 PD |
65 W Class 4 PoE |
- |
195 W Class 4 PoE |
- |
370 W Class 4 PoE |
|||||||
|
Power supply |
External power adapter (included) |
Internal power supply |
Internal power supply |
Internal power supply |
Internal power supply |
Internal power supply |
|||||||
|
Safety |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. L 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
|||||||
|
Emissions |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
|||||||
|
Aruba Instant On 1830 8G Switch (JL810A) |
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) |
Aruba Instant On 1830 24G 2SFP Switch (JL812A) |
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) |
Aruba Instant On 1830 48G 4SFP Switch (JL814A) |
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) |
||||||||
|
Immunity |
|||||||||||||
|
Generic |
EN 55035, CISPR 35, KN35 |
EN 55035, CISPR 35, KN35 |
EN 55035, CISPR 35, KN35 |
EN 55035, CISPR 35, KN35 |
EN 55035, CISPR 35, KN35 |
EN 55035, CISPR 35, KN35 |
|||||||
|
EN |
EN 55035, CISPR 35 |
EN 55035, CISPR 35 |
EN 55035, CISPR 35 |
EN 55035, CISPR 35 |
EN 55035, CISPR 35 |
EN 55035, CISPR 35 |
|||||||
|
ESD |
EN/IEC 61000-4-2 |
EN/IEC 61000-4-2 |
EN/IEC 61000-4-2 |
EN/IEC 61000-4-2 |
EN/IEC 61000-4-2 |
EN/IEC 61000-4-2 |
|||||||
|
Radiated |
EN/IEC 61000-4-3 |
EN/IEC 61000-4-3 |
EN/IEC 61000-4-3 |
EN/IEC 61000-4-3 |
EN/IEC 61000-4-3 |
EN/IEC 61000-4-3 |
|||||||
|
EFT/Burst |
EN/IEC 61000-4-4 |
EN/IEC 61000-4-4 |
EN/IEC 61000-4-4 |
EN/IEC 61000-4-4 |
EN/IEC 61000-4-4 |
EN/IEC 61000-4-4 |
|||||||
|
Surge |
EN/IEC 61000-4-5 |
EN/IEC 61000-4-5 |
EN/IEC 61000-4-5 |
EN/IEC 61000-4-5 |
EN/IEC 61000-4-5 |
EN/IEC 61000-4-5 |
|||||||
|
Conducted |
EN/IEC 61000-4-6 |
EN/IEC 61000-4-6 |
EN/IEC 61000-4-6 |
EN/IEC 61000-4-6 |
EN/IEC 61000-4-6 |
EN/IEC 61000-4-6 |
|||||||
|
Power frequency magnetic field |
EN/IEC 61000-4-8 |
EN/IEC 61000-4-8 |
EN/IEC 61000-4-8 |
EN/IEC 61000-4-8 |
EN/IEC 61000-4-8 |
EN/IEC 61000-4-8 |
|||||||
|
Voltage dips and interruptions |
EN/IEC 61000-4-11 |
EN/IEC 61000-4-11 |
EN/IEC 61000-4-11 |
EN/IEC 61000-4-11 |
EN/IEC 61000-4-11 |
EN/IEC 61000-4-11 |
|||||||
|
Harmonics |
EN/IEC 61000-3-2 |
EN/IEC 61000-3-2 |
EN/IEC 61000-3-2 |
EN/IEC 61000-3-2 |
EN/IEC 61000-3-2 |
EN/IEC 61000-3-2 |
|||||||
|
Flicker |
EN /IEC 61000-3-3 |
EN /IEC 61000-3-3 |
EN /IEC 61000-3-3 |
EN /IEC 61000-3-3 |
EN /IEC 61000-3-3 |
EN /IEC 61000-3-3 |
|||||||
|
Device Management |
Aruba Instant On Cloud; Web browser; SNMP Manager |
Aruba Instant On Cloud; Web browser; SNMP Manager |
Aruba Instant On Cloud; Web browser; SNMP Manager |
Aruba Instant On Cloud; Web browser; SNMP Manager |
Aruba Instant On Cloud; Web browser; SNMP Manager |
Aruba Instant On Cloud; Web browser; SNMP Manager |
|||||||
|
Mounting |
|||||||||||||
|
Mounting positions and supported racking |
Supports table-top mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using base surface mounting holes |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Suports under-table mounting using the brackets provided |
|||||||
|
Aruba Instant On 1830 8G Switch (JL810A) |
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) |
Aruba Instant On 1830 24G 2SFP Switch (JL812A) |
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) |
Aruba Instant On 1830 48G 4SFP Switch (JL814A) |
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) |
||||||||
|
Transceivers |
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) |
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) |
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) |
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) |
|||||||||
|
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) |
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) |
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) |
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) |
||||||||||
|
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) |
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) |
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) |
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) |
||||||||||
