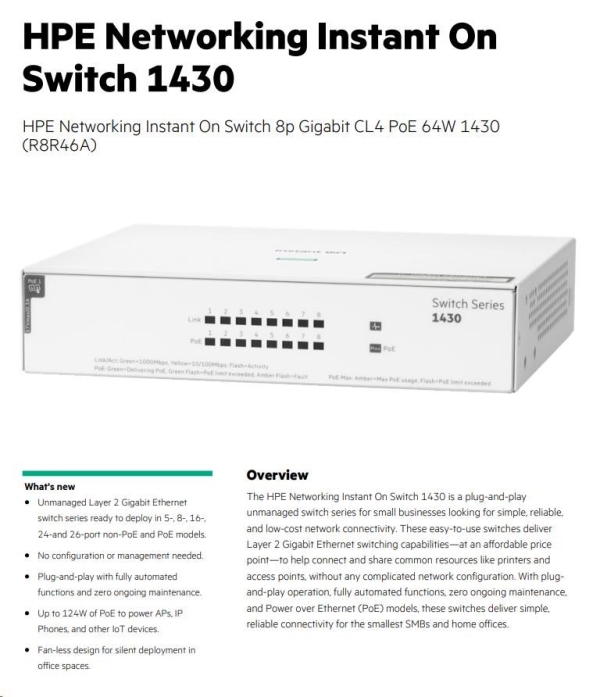

Aruba Instant On 1430 8G Class4 PoE 64W Switch

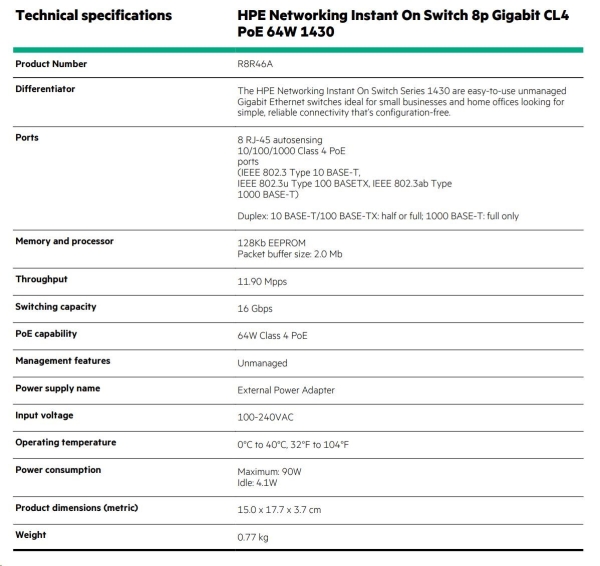

Parametry
|
Aruba Instant On 1430 8G Class4 PoE 64W Switch (R8R46A) |
|
|
I/O ports and slots |
8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|
Dimensions |
150(d) x 177(w) x 37(h) mm |
|
Weight |
1.70 lb (0.77 kg) |
|
Processor and Memory |
128Kb EEPROM; Packet buffer size: 2.0 Mb |
|
Performance |
|
|
100 Mb latency |
< 2.7 µSec |
|
1000 Mb latency |
< 1.80 µSec |
|
Throughput (Mpps) |
11.90 Mpps |
|
Capacity |
16 Gbps |
|
MAC address table size |
8192 entries |
|
Reliability MTBF (years) |
131.1 |
|
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C) non-condensing |
|
Nonoperating/ storage temperature |
-40°F to 158°F (-40°C to 70°C) up to 15000 ft |
|
Nonoperating/ storage relative humidity |
15% to 90% @ 149°F (65°C) non-condensing |
|
Altitude |
up to 10,000 ft (3 km) |
|
Acoustics |
Fanless |
|
Frequency |
50Hz/60Hz |
|
AC voltage |
100-240VAC |
|
Current |
2A (54VDC - 1.58A) |
|
Maximum power rating |
90W |
|
Idle power |
4.1W |
|
PoE power |
64W Class 4 PoE |
|
Power Supply |
External Power Adapter |
|
Safety |
|
|
Emissions |
|
|
Immunity |
BS/EN 55035, CISPR 35, KS C 9835 |
|
Generic |
EN 55035, CISPR 35 |
|
EN |
EN/IEC 61000-4-2 |
|
ESD |
EN/IEC 61000-4-3 |
|
Radiated |
EN/IEC 61000-4-4 |
|
EFT/Burst |
EN/IEC 61000-4-5 |
|
Surge |
EN/IEC 61000-4-6 |
|
Conducted |
EN/IEC 61000-4-8 |
|
Power frequency magnetic field |
EN/IEC 61000-4-11 |
|
Voltage dips and interruptions |
EN/IEC 61000-3- 2 |
|
Harmonics |
EN /IEC 61000-3-3 |
|
Device Management |
Unmanaged |
|
Mounting positions and supported racking |
|
